Reports Screen

Introduction

The Report screen provides users with a detailed view of data, allowing them to filter and analyze information based on specific time ranges.

Procedure

Accessing the Reports

  • Navigate to the left navigation panel.

  • Click on Reports to open the Report screen.

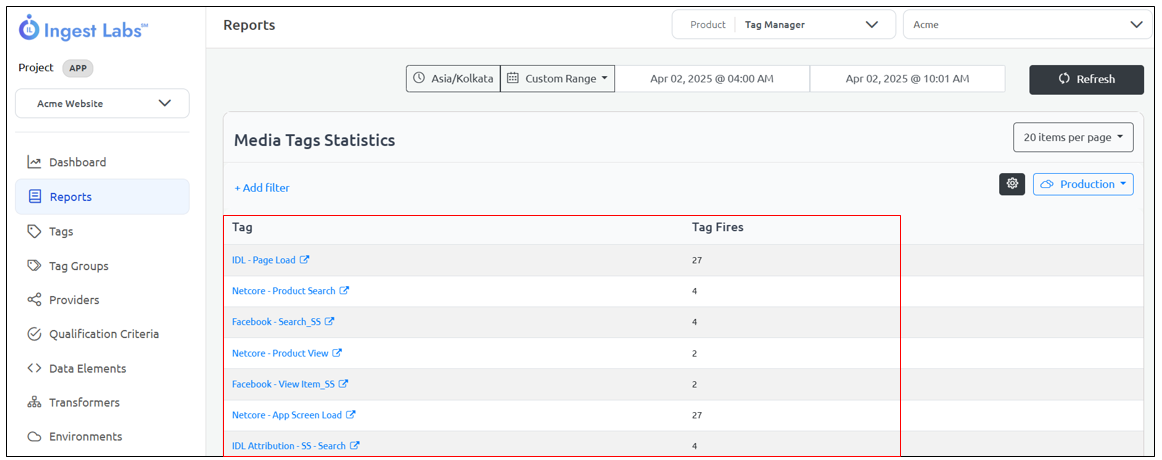

Understanding Report Columns

  • Tag Column: Displays the Tag name.

  • Tag Fires Column: Shows the number of times the tag is triggered.

Adding a Filter

Click Add Filter.

Select the filter criteria as needed.

Default Time Range

  • Reports are generated for a 24-hour period by default.

Filtering Reports by Time Range

  • To view reports for a specific time range:

    1. Click the dropdown under Custom Range.

    2. Choose one of the available time ranges:

      • Today so far

      • Last 3 hours

      • Last 6 hours

      • Last 24 hours

      • Last 7 days

      • Last month

    3. The report will be displayed based on the selected time range.

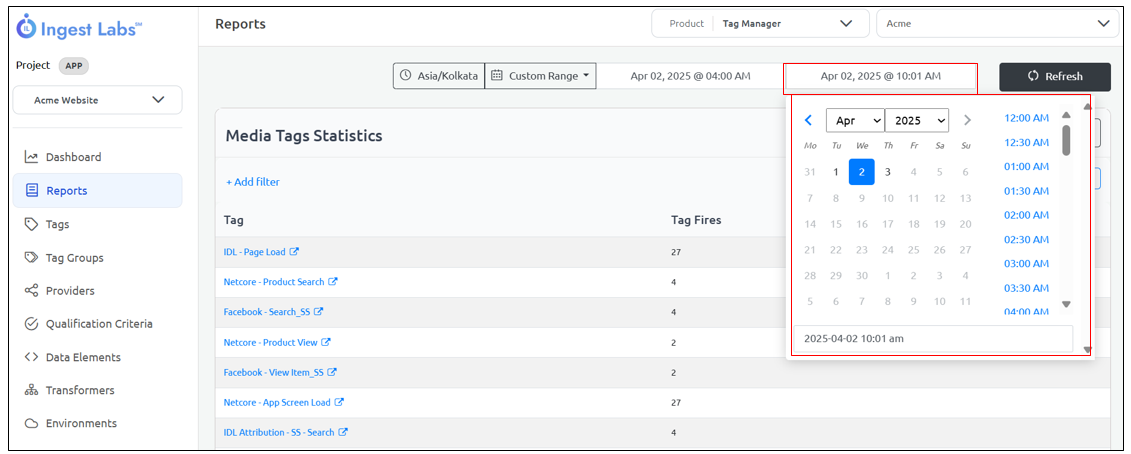

Manually Selecting a Time Range

  • You can manually select a start date and end date to filter the report data according to your requirements.

Note: You can also manually enter the date and time.

Refreshing the Report

  • Each time you modify the time range selection, click the Refresh button to update the report accordingly.

Selecting the Environment

  • Click the Environment dropdown and choose one of the following:

    • Production: Redirects to the Production environment.

    • Staging: Redirects to the Staging environment.

Adjusting Items Displayed per Page

  • Click the dropdown to select the number of items displayed per page.

  • The available options are:

    • 20 items per page

    • 50 items per page

    • 100 items per page

Note: Ingest Labs retains the metadata information for a period of 6 months at any given point. For customers who have Enterprise contracts with longer data retention needs, Ingest Labs retains and archives the data as agreed in contracts.
